SPECIFICATIONS

Brand Name: ORIVISION

Dimensions: 165mm x 82mm x 13mm

HDMI In: 4096x2160@60Hz YUV420 4096x2160@30Hz YUV444

HDMI Out: 4096x2160@60Hz YUV420 4096x2160@30Hz YUV444

High-concerned chemical: None

Line Audio In: Analog Stereo to I2S Input (Connected to Channel 1)

OS Support: Windows XP/7/8/10/11, Android 5.0+, macOS

Origin: Mainland China

Power: PD Fast-Charging Protocol (Max 100W)

UVC OUT Resolutions: 4096x2160@60Hz (MJPEG) 3840x2160@30Hz (YUV420)

UVC OUT Video Formats: YUV422, MJPEG, RGB24, NV12

Weight: 220g

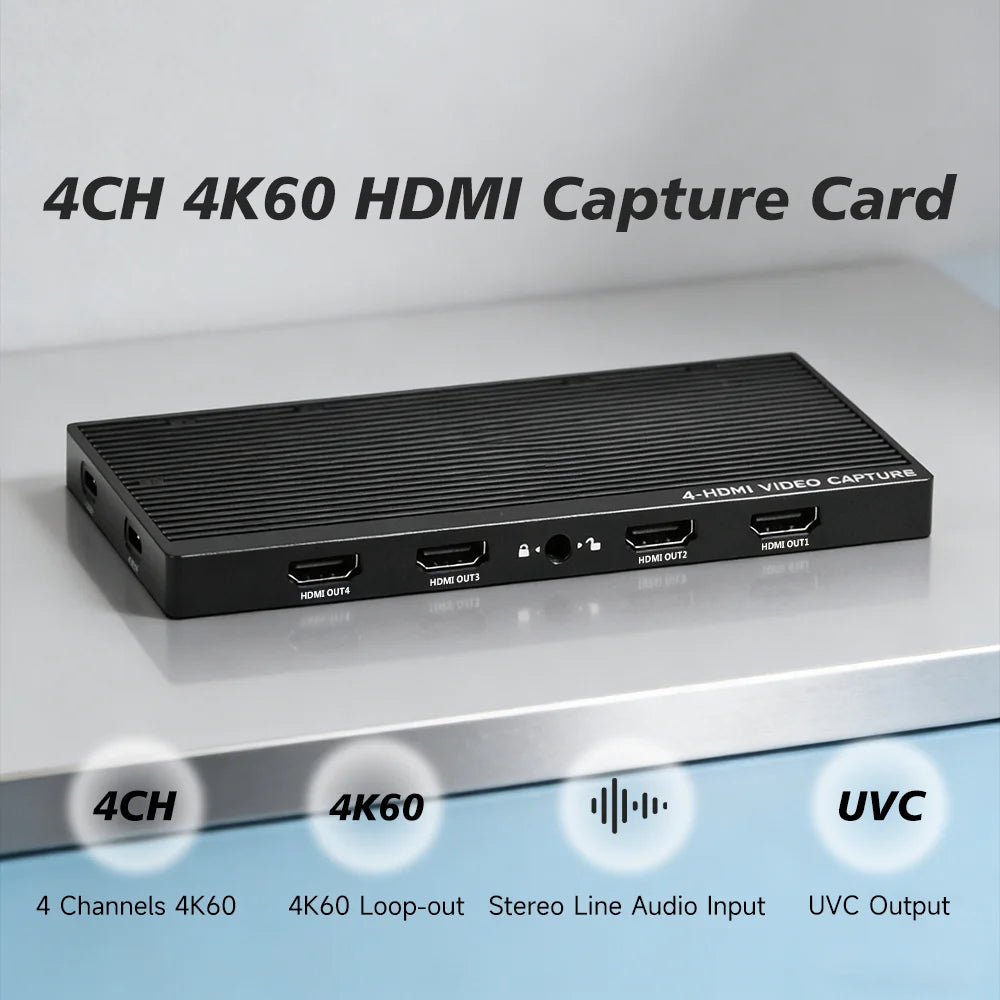

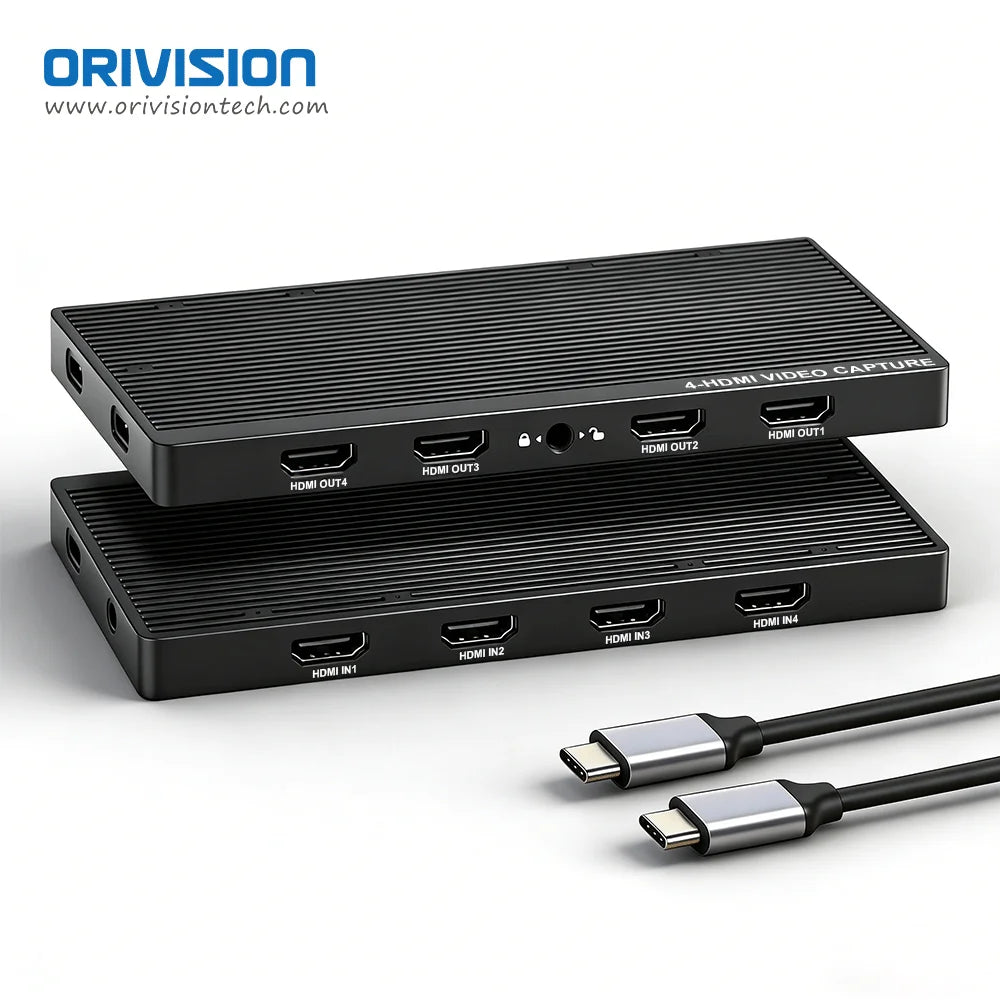

4 Channels 4K60 HDMI Capture Card

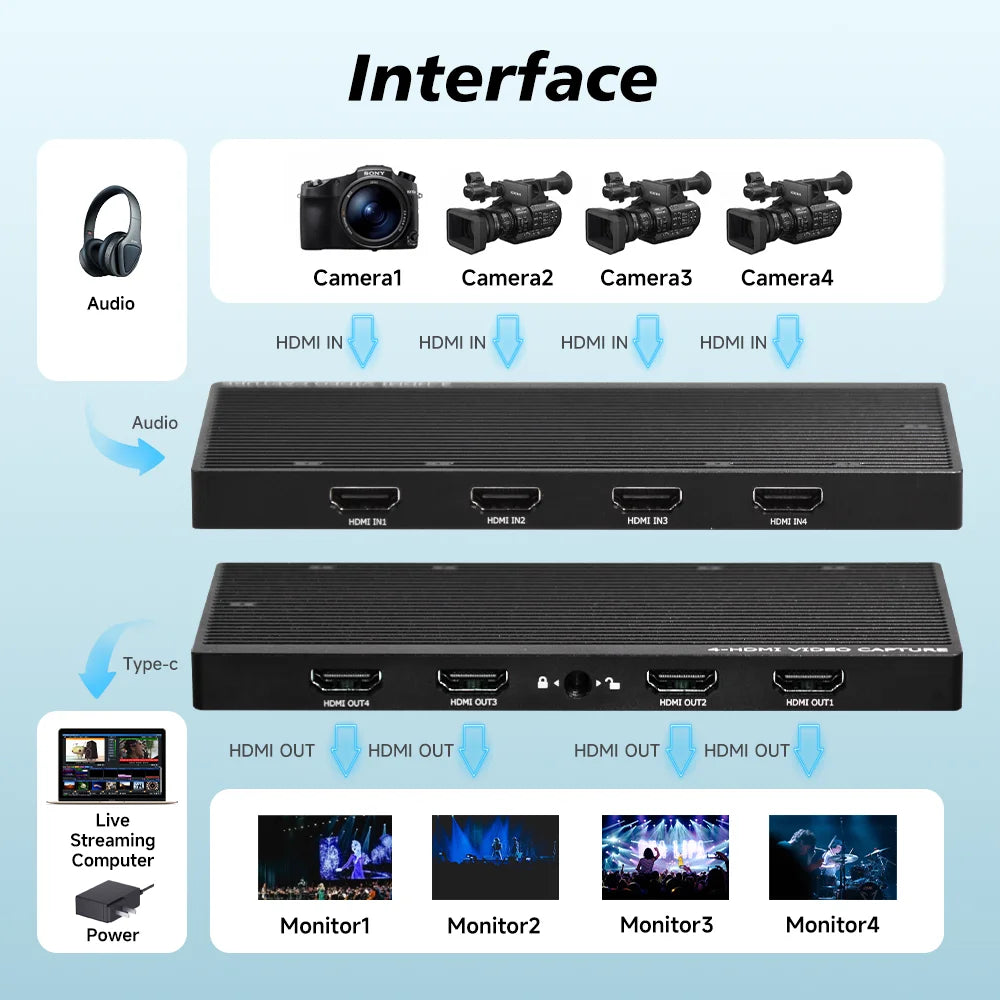

The 4-Channel HDMI Capture Card integrates four HDMI-to-USB capture channels via a USB hub. It connects to a computer’s Type-C port using the provided Type-C cable.

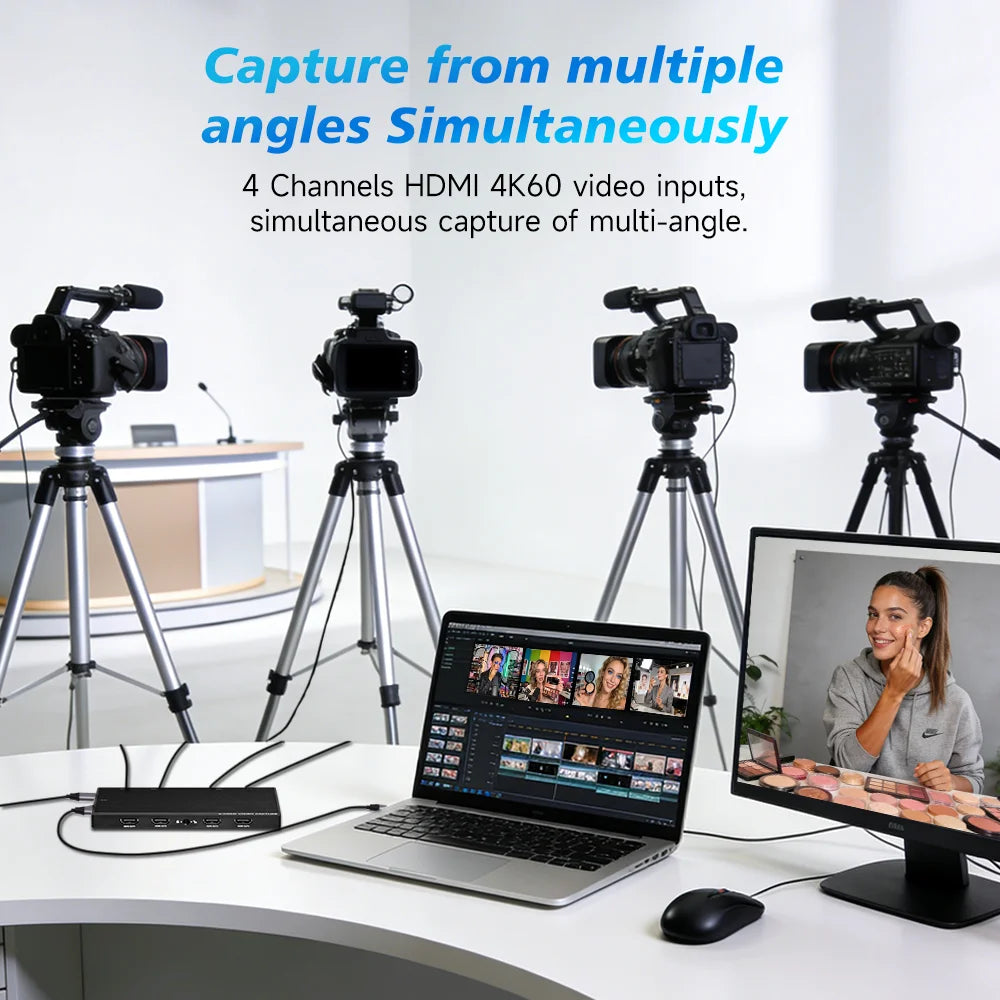

Compliant with standard UVC protocol (plug-and-play, no drivers required), it works with software like OBS, vMix, and Zoom on computers, as well as the "V Director Recording" app on mobile devices and iPads. Add four distinct "Video Capture Device" sources in your software to display all four audio/video signals simultaneously and enable broadcast switching.

Products Features:

• Support 4 channels 4K60Hz HDMI input/loop-out, support 4 channels 4K60Hz high-quality recording and live streaming;

• Support 1 channel UVC lightning output port, including 4 channels UVC audio and video signals;

• Support 1 channel stereo line audio input, can be connected to mixing consoles, etc;

• Support 100W PD fast charging, powered by mobile phones or computers, can be used for a short period of time without power supply;

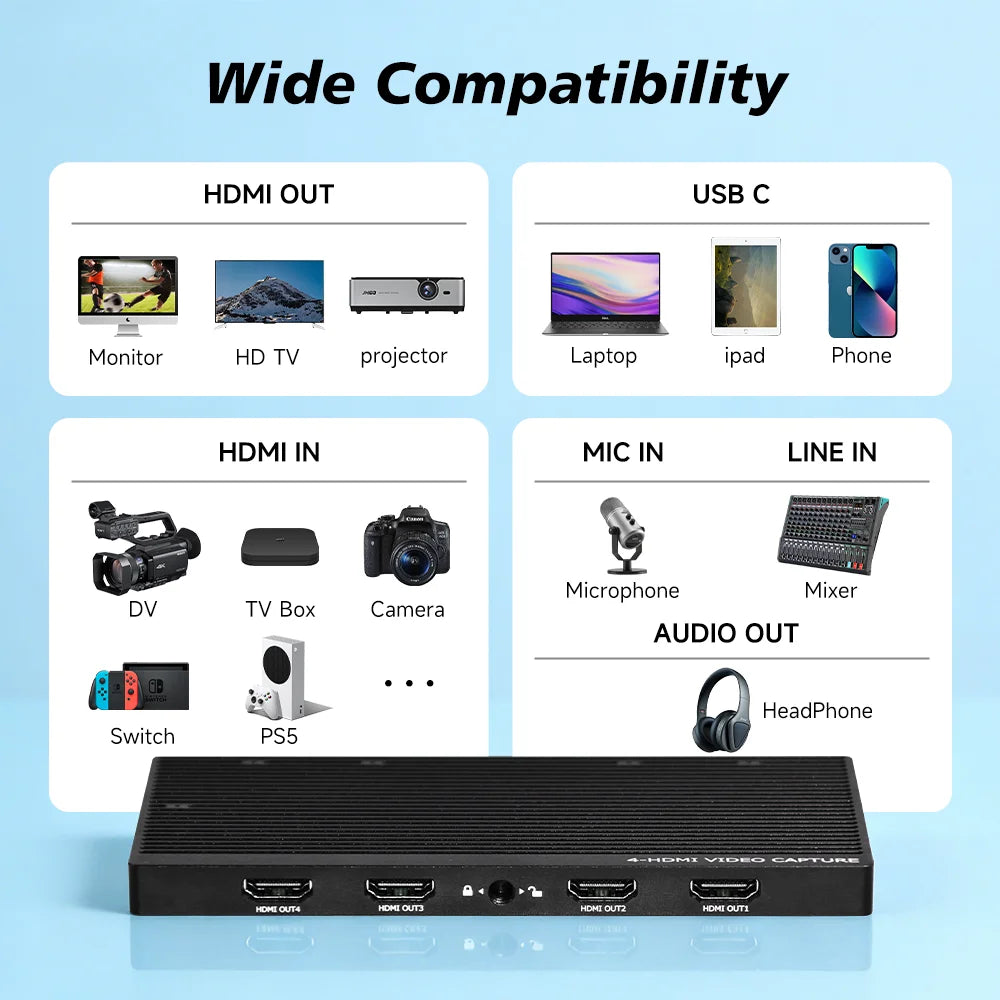

• No driver required, works with a variety of devices, including laptops, tablets, PS4&5, Switch, cameras, and TV boxes;

• Support Windows XP/7/8/10/11, MacOS, Android 5.0+, compatible with software and platforms like OBS Studio, QuickTime Player, TikTok, Twitch, and YouTube, all without drivers;

• Suitable for high definition acquisition, live broadcasts, conference rooms, video recording, teaching recording, medical imaging, game entertainment live broadcasting, etc

• Simple and convenient, plug and play.
